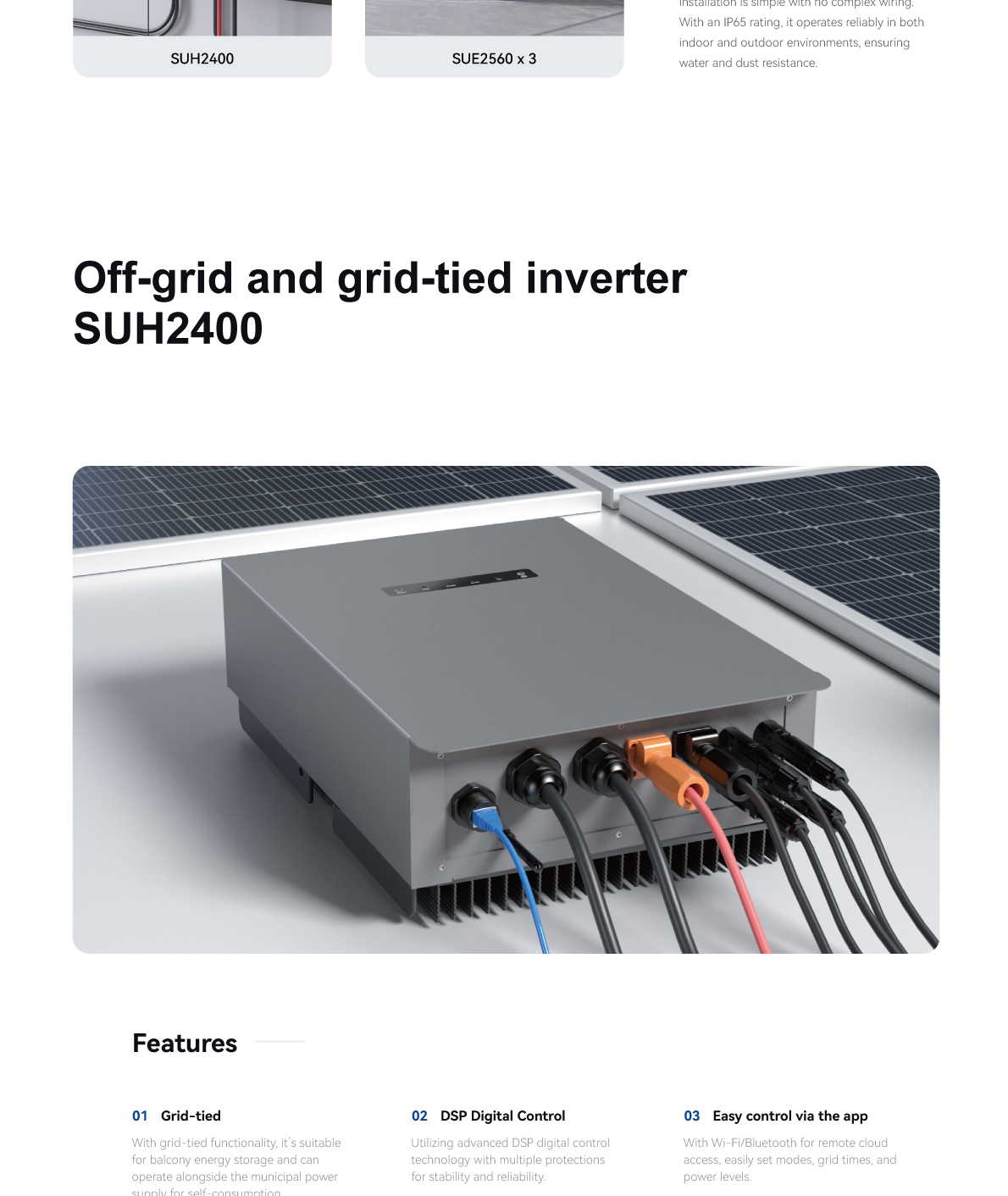

SUH2400

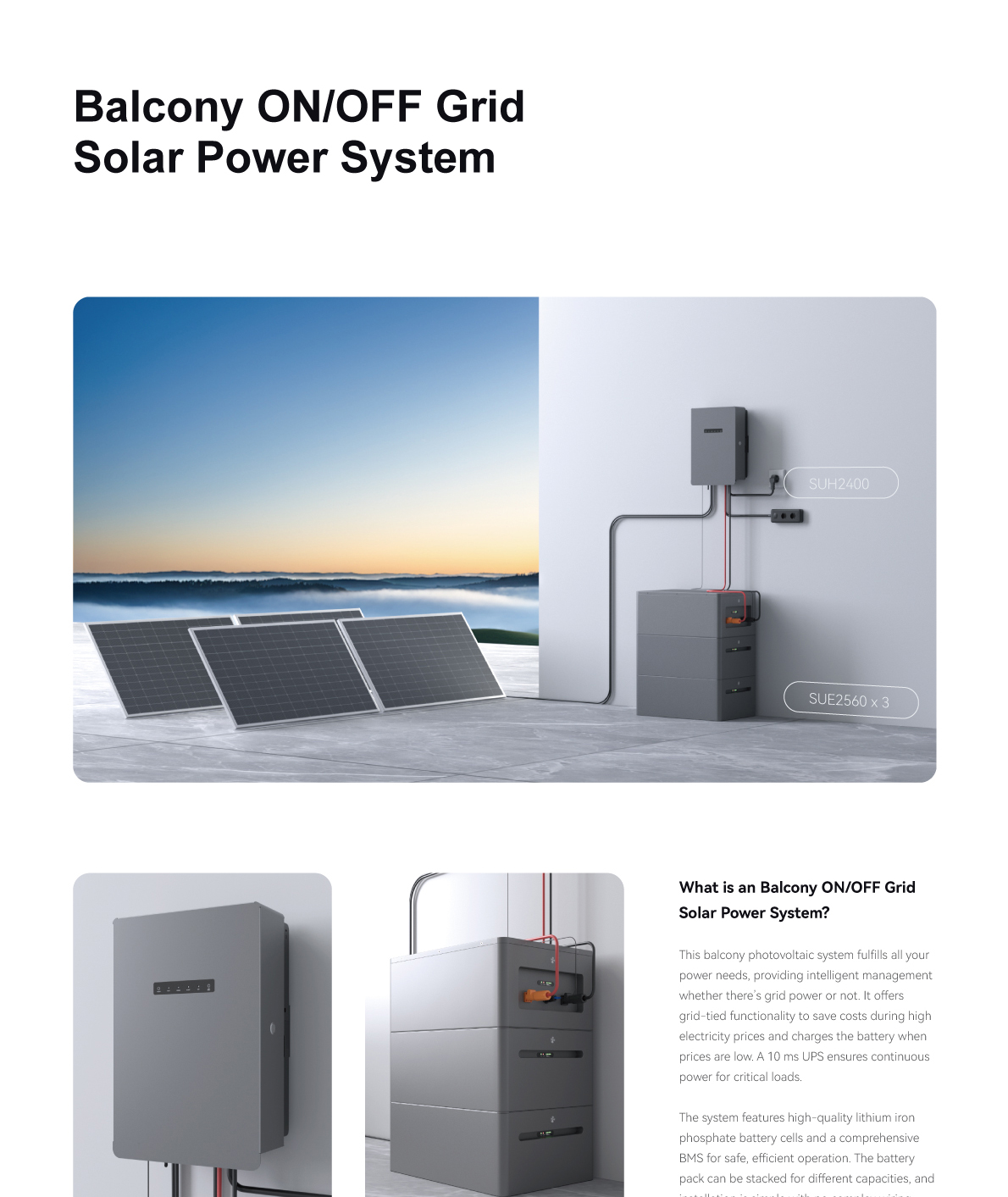

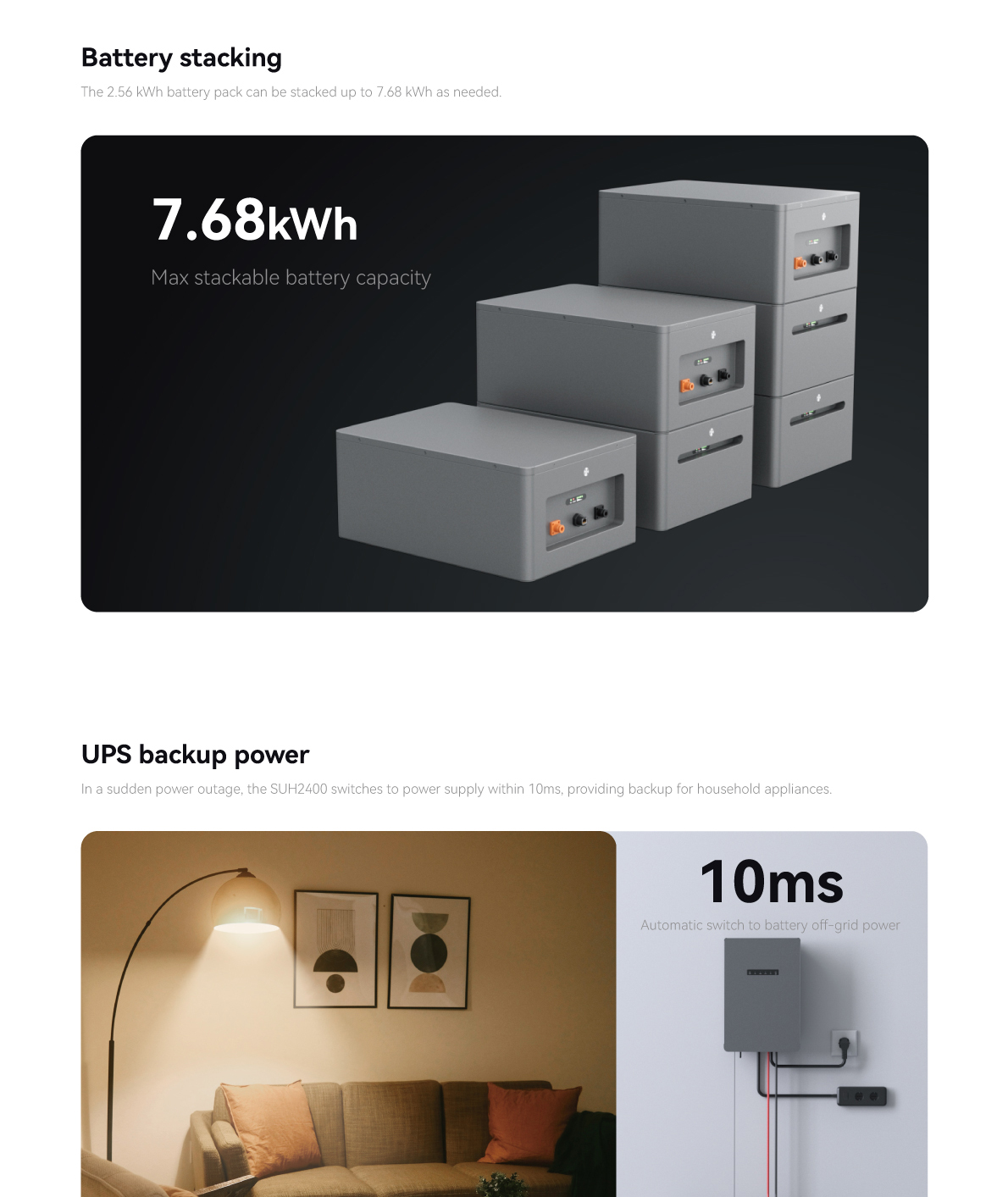

With 2.4kW of AC output (4.8kW surge), Sunord SUH2400 can operate multiple high-wattage appliances simultaneously. You can also chain with 3 x SUE2560 sunord battery together, the capacity will up to 7.68kwh, you could choose the other matching battery pack too, Intelligently senses your power usage and saves more than 90% of your electricity bill.
Product Features
  • Rating power:2400W, peak 4800w

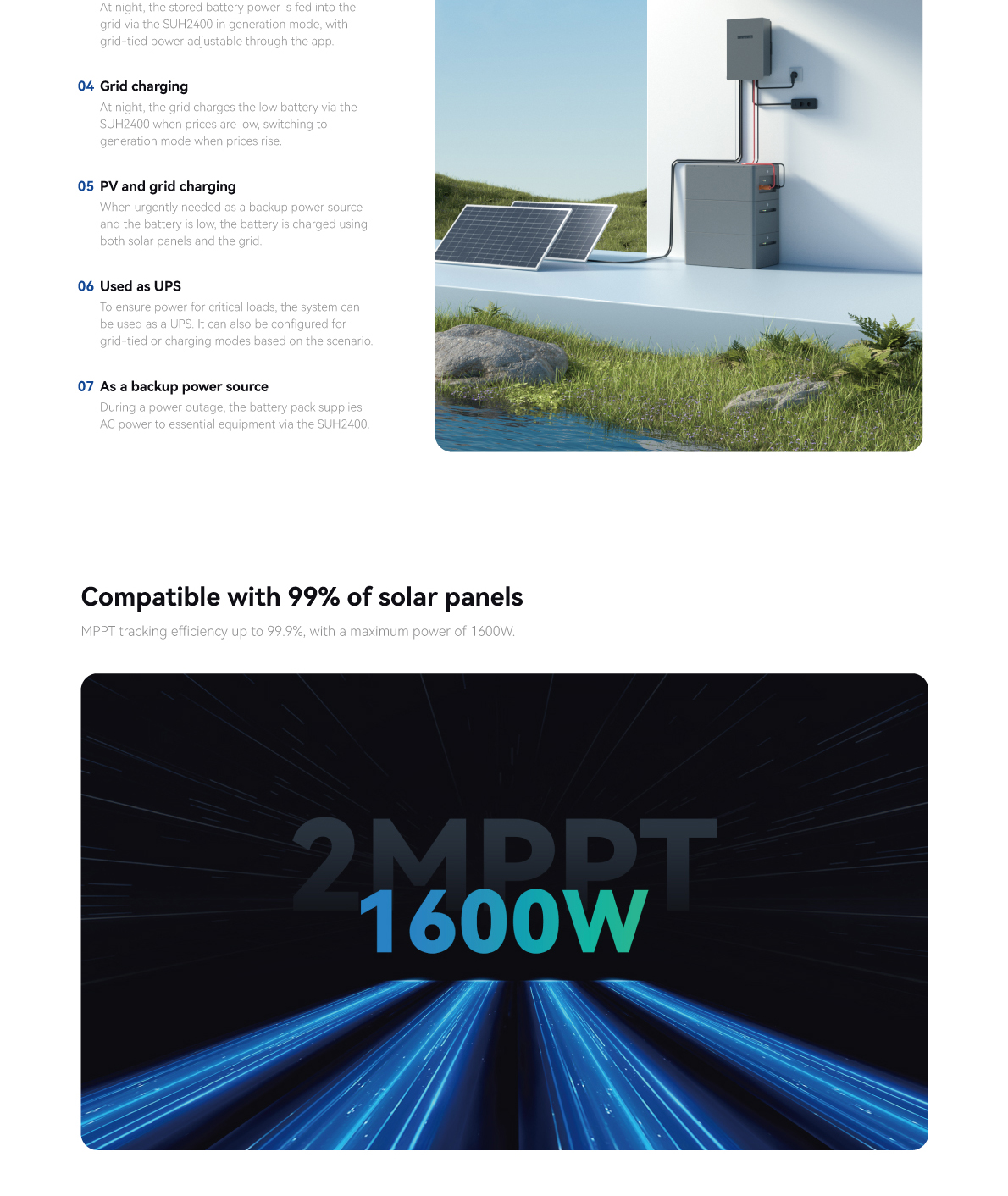

  • 1600W solar input，2x MPPT inside, allowing for fast charge by sunlight

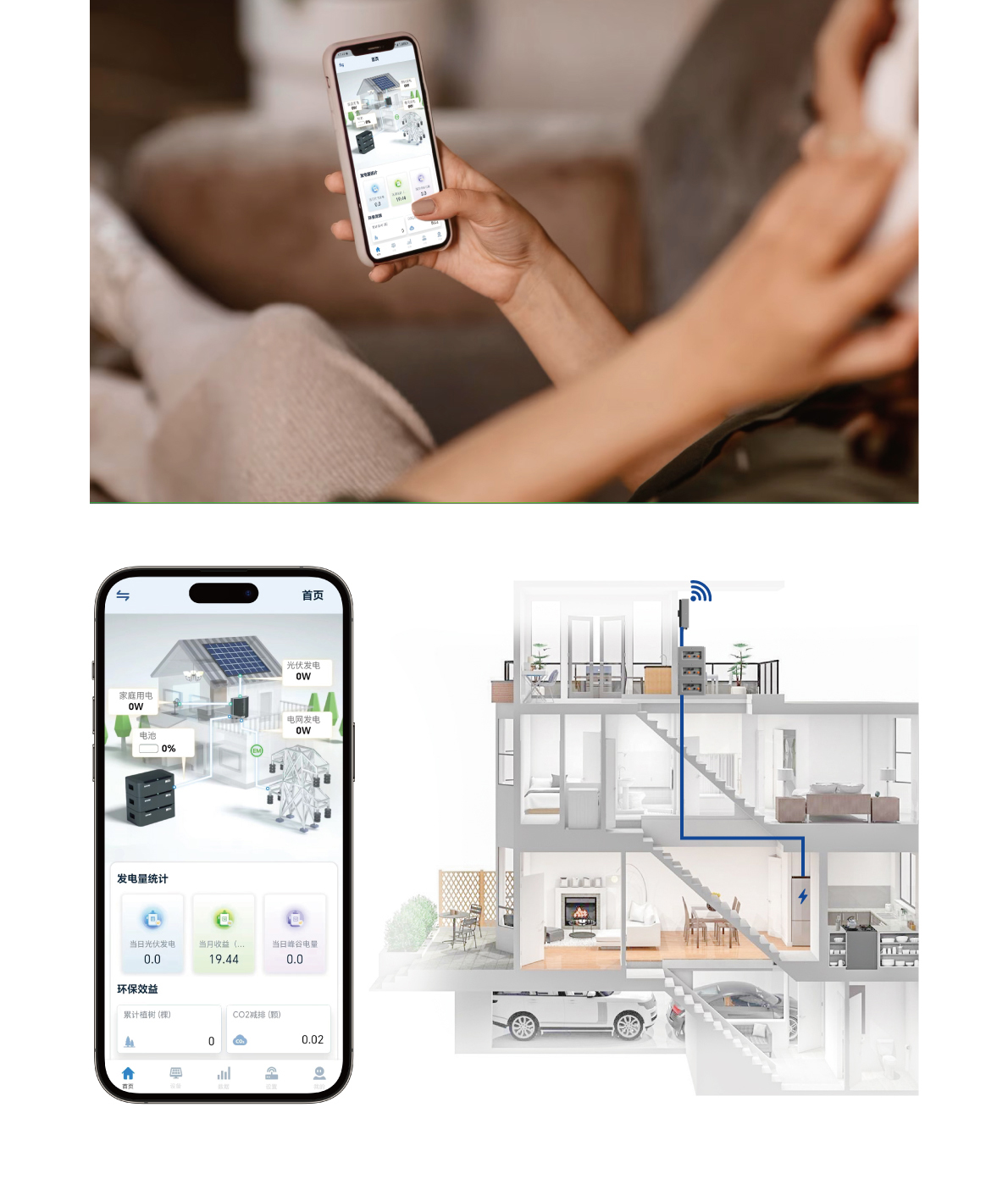

  • Monitor energy intelligently via the app. Connect with Wi-Fi
  • 2-year hassle-free warranty.
  • Industry-leading high-quality components ensuring 10 years of product life
  • Certification: EMC: EN IEC 61000-1/3 & LVD: EN IEC 62109-1/2 & Grid: VDE-AR-N 4105
Email Send E-mail to us
message Leave a message
Product Details
SUH2400 Technical Specifications
SUH2400 Details
ModelSUH2400
Output
Rated power2400W
Peak power4800W
Rated voltage220/230/240VAC
Output frequency50/60Hz±0.1%
Output waveform:Pure sine wave
THDV%<2% (linear load) ; <7% (non-linear load)
Overload capacity

5 min @ 102%~120% rated load；

10s@120%~150% rated load；

5s@>150% of rated load

Efficiency
Grid charging (AC-DC)93%
Battery discharge(DC-AC)92%
MPPT99.9%

PV charging

96%
Grid charging
Input voltage range184Vac~253Vac
Input frequency range48Hz-51Hz
Input power factor≥0.95
Battery and Charging
Battery nominal voltage51.2Vdc
Rated capacity:50Ah
Capacity2.56kWh
Charging control methodPre charge, constant current, constant voltage,equalization charge, float charge, shutdown
Charging interruption voltage56.8V adjustable
Discharge termination voltage44V adjustable
Charging currentDefault 20A, maximum 40A, adjustable
Pre charge current1.5A
Solar charging

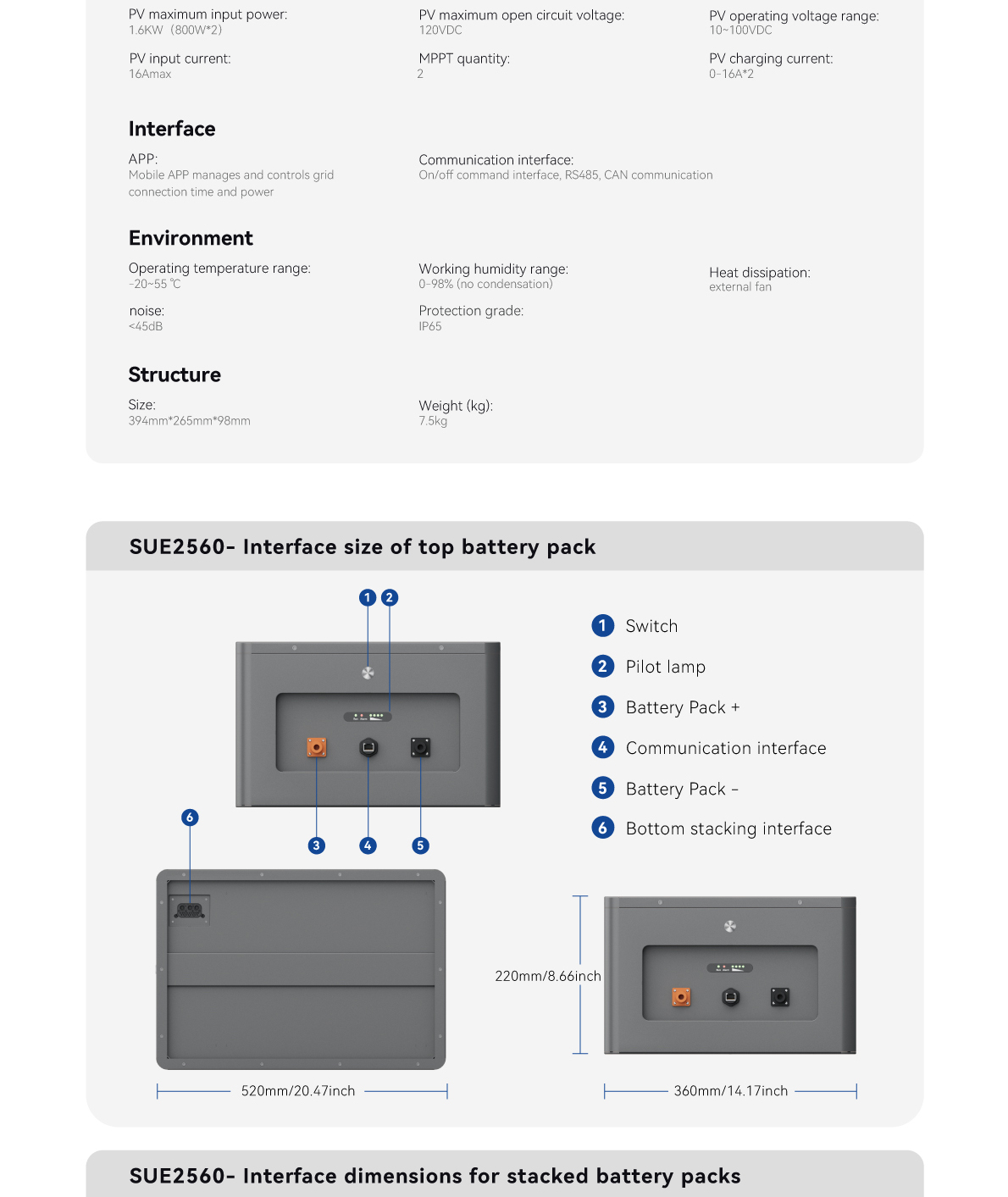

PV maximum input power800W*2
PV maximum open circuit voltage100VDC
PV operating voltage range:10~100VDC
PV input currentMPPT 16A max
MPPT quantity2
PV charging current0-16A*2
Interface
APPMobile APP manages and controls grid connection time and power
Communication interfaceOn/off command interface, RS485, CAN communication
Environment
Operating temperature range-20~55 ℃
Working humidity range0-98% (no condensation)
Heat dissipationexternal fan
Noise<45dB
ProtectionIP65
Structure

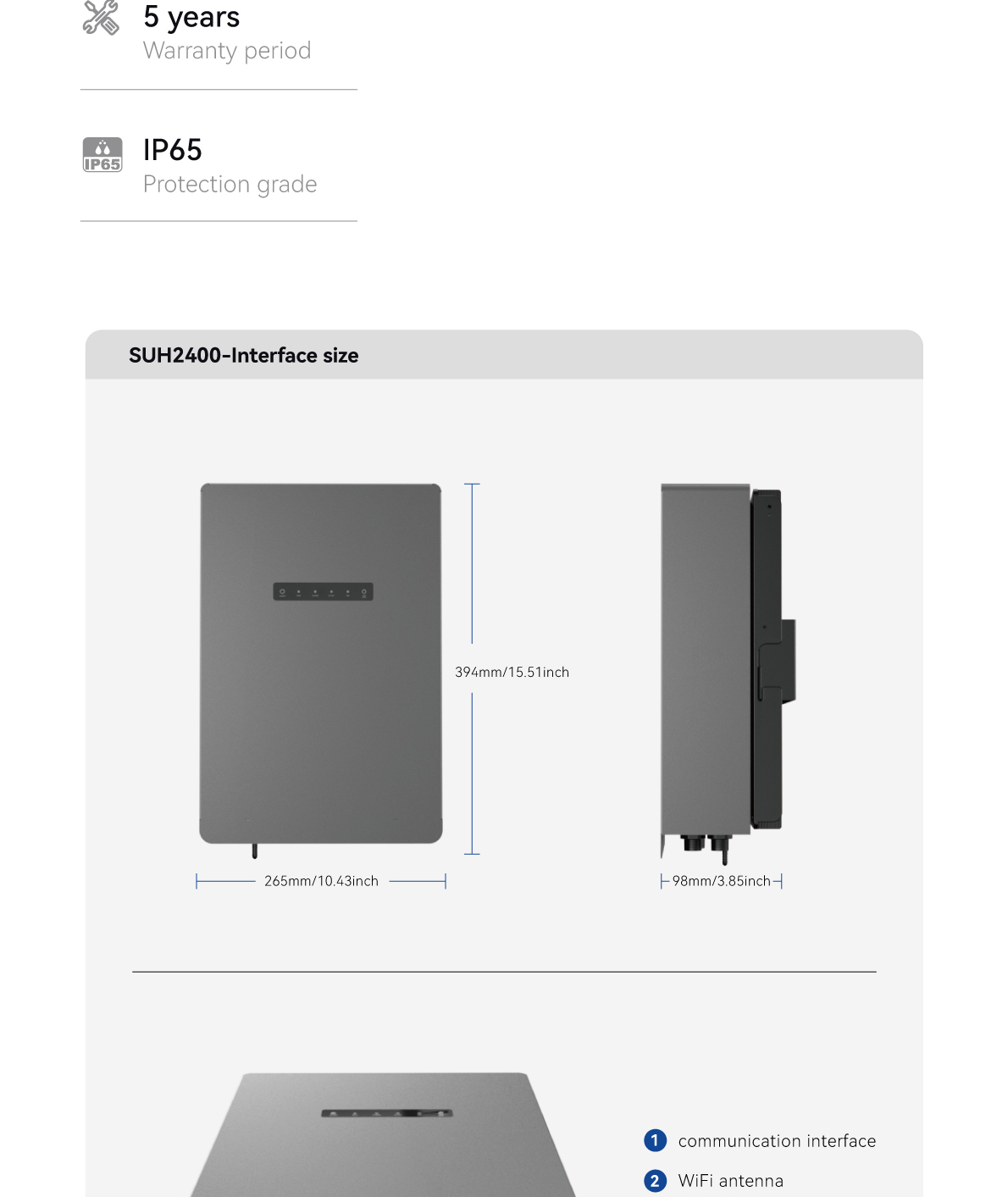

Size394mm*266mm*92mm
Weight7.5kg
*The rated voltage/frequency range can be adjusted based on the requirements of the local power department.

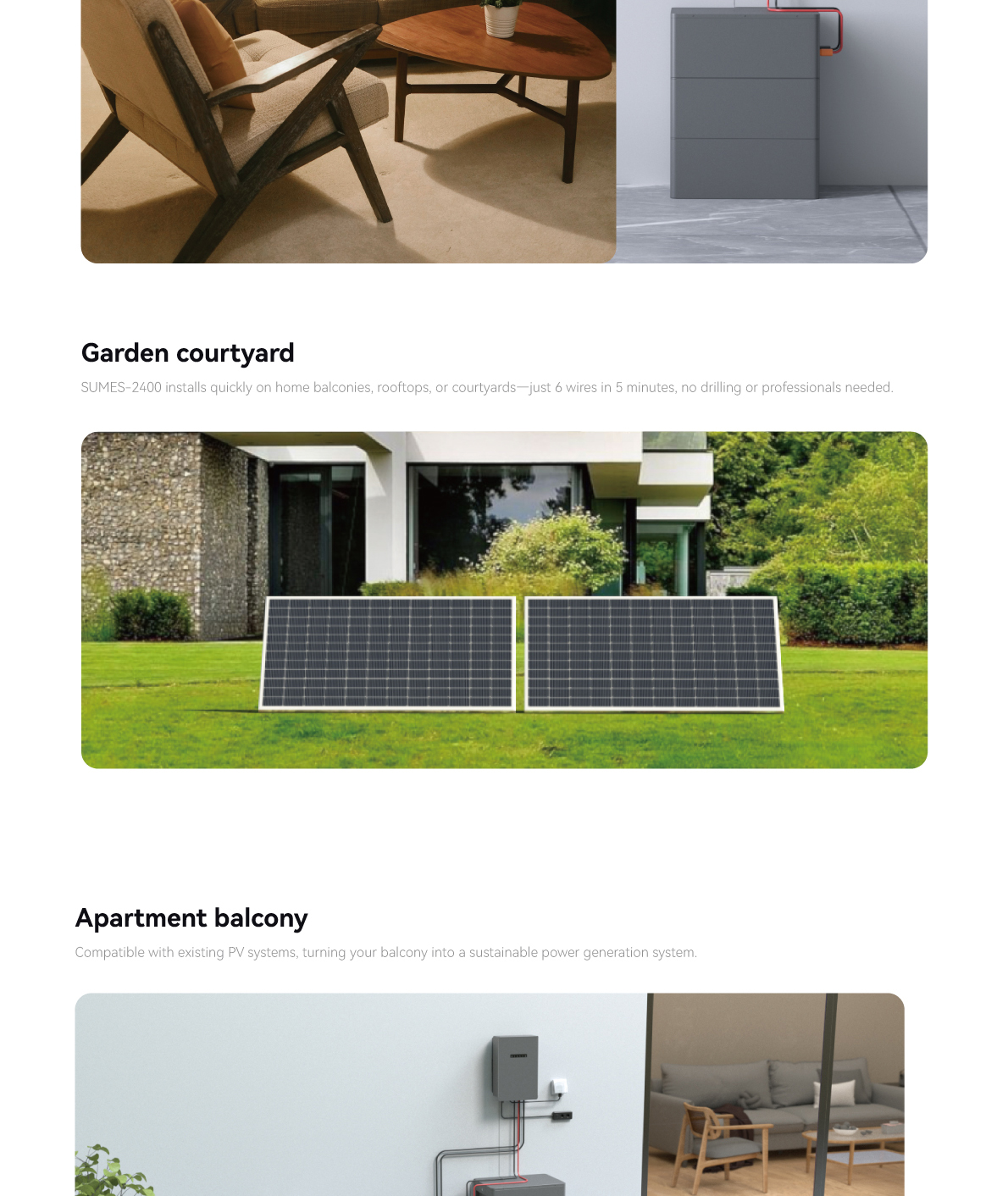

Product Applications
